2024 new design Handheld fiber laser welding machine
Get a free quoteThe appearance of Handheld welding machines on the market is all the same, and there is no recognition at all.
In order to let customers notice our products at a glance, we hired the most professional mechanical design team in China to carefully Design a unique handheld laser welding machine. And we have modified and upgraded it in details to make it more in line with people's usage habits without affecting its performance.
Insert 4 colors of main pictures
1. Unique three-color light-safety alarm device, your safety butler, to ensure your safety at any time;
2. With safty lock . Machine only working on metal , and not working on people skin
3. Door protection. When the door is opened, the machine will automatically stop working. This further ensures the safety of the machine
4. Safty lock with keys on both sides , more safe when use this machine
5. The air outlets on all 4 sides of the machine are enlarged to accelerate heat dissipation and extend the life of the laser source and the machine
6. The grooved waistline, armrests on both sides, and universal wheels at the bottom make it more convenient for both carrying and sliding.;
7. With max laser source / double wire feeder / Chaoqiang SUP23T welding head/ Hanli water chiller .
8. The fiber cable is wrapped in denim and leather, which is safer and more wear-resistant.
9. The control panel has been upgraded to be more responsive and smooth to use, including 20 languages.
The handheld fiber laser welding machine replaces the previous fixed optical path, which is more flexible and convenient, realizes long- distance laser welding, and overcomes the limitation of the travel space of the workbench . The red light is used for positioning, which is used for the calibration of the welding head position; the welding position is more accurate,The laser welding depth is large and the welding is firm.
1) CE, FDA, EMC, TEST REPORT and other certificates;
2) Comply with European export standards, all components are CE certified;
Video
Technical Parameter
Laser wevelerngth | 1080(±10)nm | ||
Ouput fiber length | 10M | ||
Max laser power | 1500W | 2000W | 3000W |
Ratnd power | 6KW | 7KW | 8KW |
Suply wiage(V) | 220V/50HZ | 220V/50HZ | 380V/50HZ |
Spot atijusiment range | 0.1-5MM | 0.1-5MM | 0.1-5MM |
Laser fequeney | 1-10000HZ | 1-10000HZ | 1-10000HZ |
Conling syeem | Cw 1500 | Cw2000 | Cw3000 |
Observing system | Red ligit |
Application
Applicable to various metals and alloys such as stainless steel, carbon steel, copper, aluminum, gold, sil- ver, chromium, nickel, titanium etc.
Handheld fiber laser welding machine is widely used in the complicated and irregular welding processes of cabinets and kitchens, stair lifts, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes, stainless steel furniture and other industries.

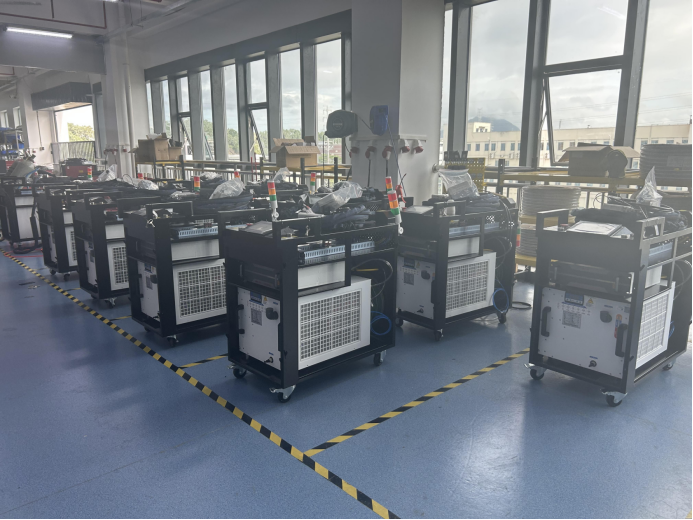

Production Facility
