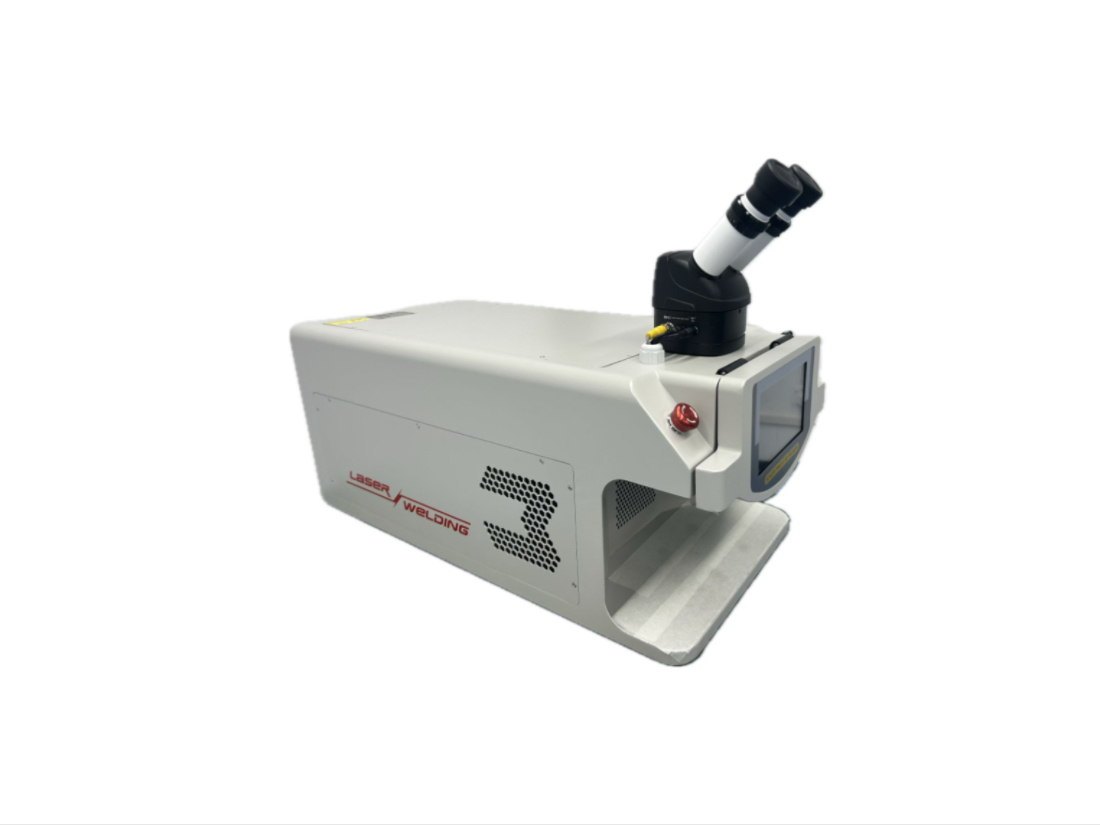

QCW Jewelry laser welding machine
Get a free quote1. Small and convenient: Compact structure and small size, integrated design of the whole machine, reasonable layout, saving space.
2. Simple operation and easy to learn: Adopting self-developed welding control system, zero foundation can be easily used
3. Maintenance-free: Intelligent air cooling without consumables
4. Efficient welding: Fast welding speed, high efficiency, stable power, good welding effect.
Video
Technical Parameter
Power consumption | 300W | 500W | 750W |
Maximum pulse energy | 6J | 10J | 15J |
Laser power | 60W | 100W | 150W |
Net weight | 38kg | 50kg | 63kg |
Maximum frequency | 50Hz | ||
Pulse Width | 0.5-50ms | ||
Laser Spot size | 0.3-1.5mm | ||
Light spot adjustment method | Electric beam expansion | ||
Machine size | 550x410x300mm | 550x410x300mm | 780x420x320mm |
Working environment humidity | 20%-85% |
Application
It can be efficiently applied to various industries, such as jewelry industry, electronic components, precision machinery, watch industry, medical industry, etc. It can be used for welding of various metals, alloys, and dissimilar materials.
