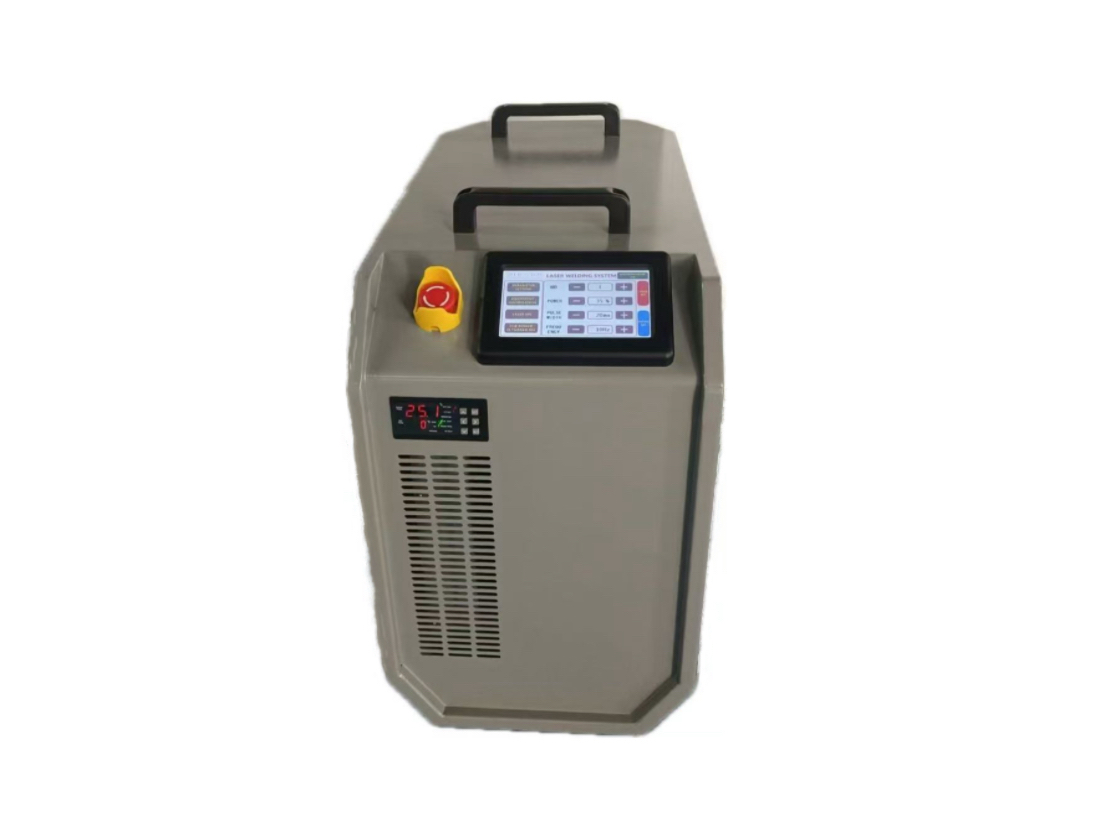

QCW Handheld laser welding machine

Get a free quote

1. Suitable for thin plate welding, small heat impact, no discoloration or deformation of welding materials.

2. Fast welding speed, 3m can be welded in one minute, greatly improving production efficiency.

3. Low power consumption, no consumables, energy saving and environmental protection.

4. Built-in water cooling, small size, saving space.



Video

Technical Parameter

ModelSAN-150W-qcw
SAN-300W-qcw
Output power 750W 1500W
Pulse width       0.2-50ms        0.2-50ms
Max pulse energy 30J60J
Laser wavelength1080±5nm1080±5nm
Optical fiber core 20/30/50/100/150/200um&DOE0.1-10ms
 Fiber optic cable length 1.5&6m 1.5&6m
    Power demandAC220V±10%  50/60HzAC220V±10%  50/60Hz
     Cooling modeCirculating water cooling
Circulating water cooling
Operating modeQCW&PWM modulationQCW&PWM modulation
Machine size840*380*700mm
Machine weight70KG
70KG



Application

Applicable to thin plate processing, advertising characters, mobile phone communications, jewelry crafts, electronic components, clocks and watches, sensors, precision machinery and other industries

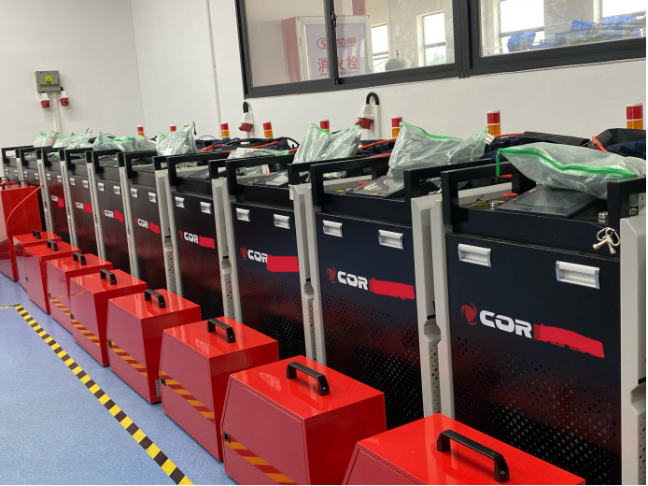

Production Facility
